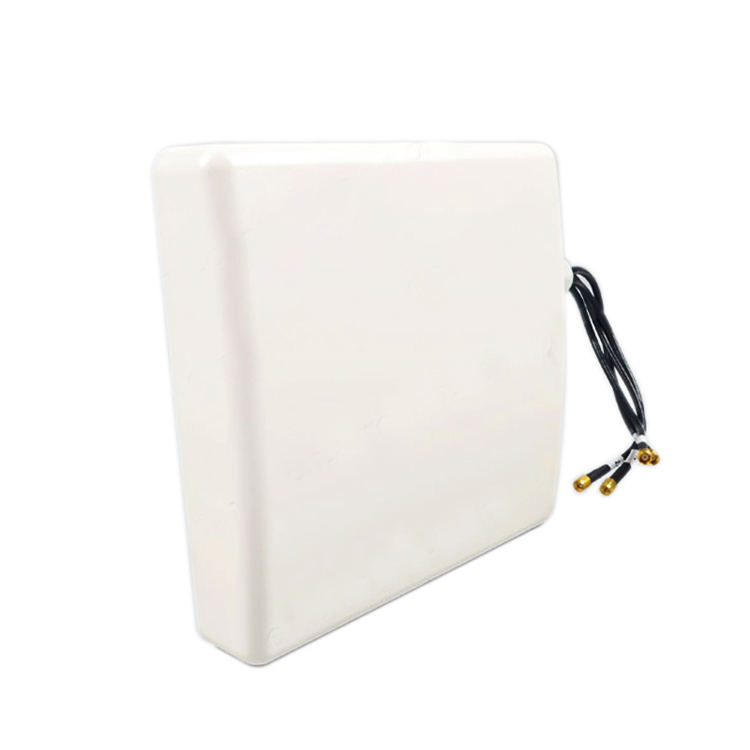

2400-2500/5725-5850Mhz-11/15dBi Panel Antenna

2400-2500/5725-5850Mhz-11/15dBi Panel Antenna

Model No.： P715404
Frequency： 2400-2500/5725-5850Mhz
Gain： 11/15dBi
VSWR： ≤2.0
Beam width： H:65° ; V:15°
Polarization： Horizontal and Vertical
Material： ABS
Product size： 237*229*50mm
Product Details
Electric Specification
Product name
2400-2500/5725-5850MHZ   MIMO panel antenna
Model No.
P715404
Frequency range-MHz
2400-2500
5725-5850
Bandwidth -MHz
100
125
Gain-dBi
11
15
Horizontal Beam width-°
65°
Vertical Beam width-°
15°
VSWR
≤2.0
Input Impedance -Ω
50
Polarization
Vertical / Horizontal
Maximum input power -W
50
Connector

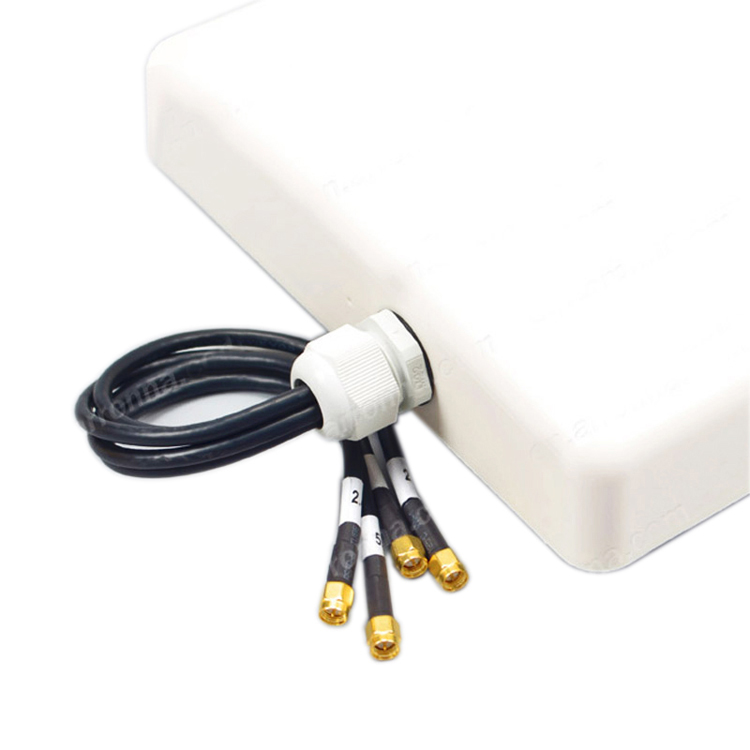

4*SMA
Mechanical Specification
Dimensions -mm
237*229*50
Weight -Kg
1.5
