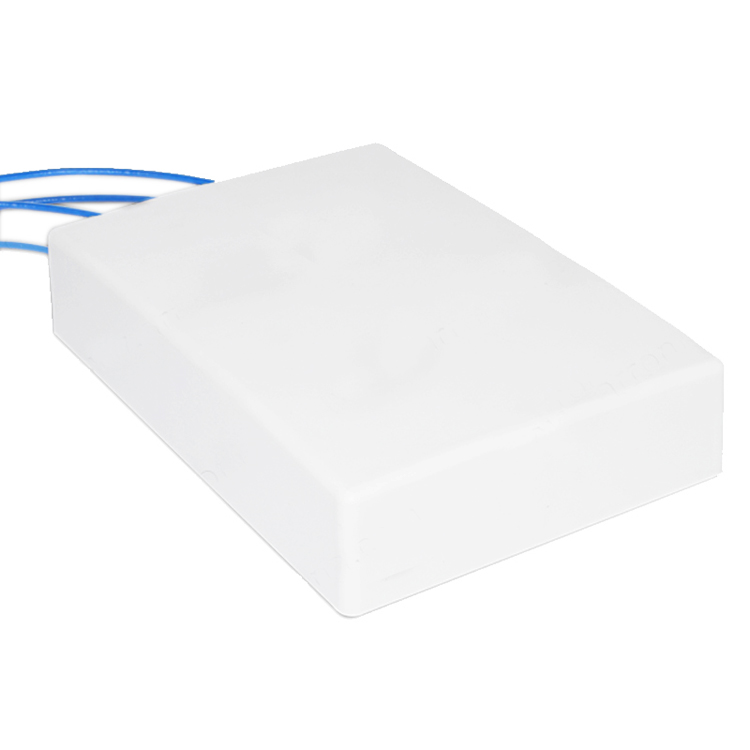

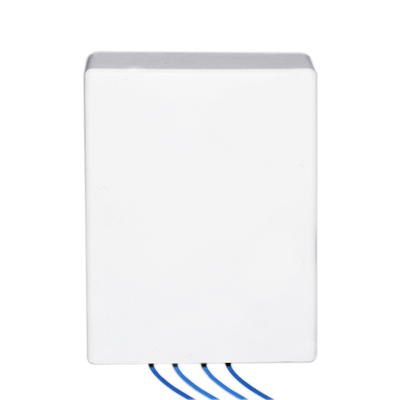

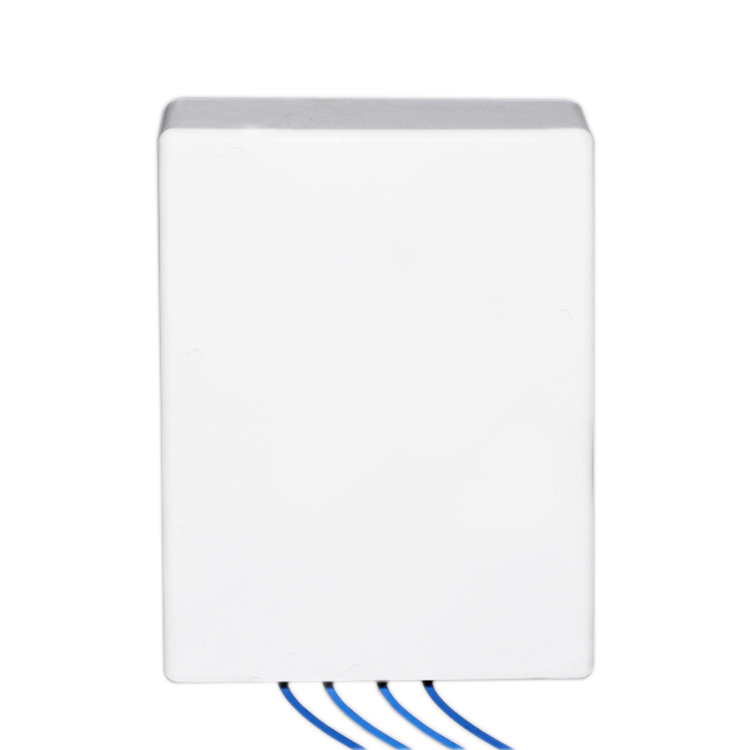

2400-2500/5150-5850Mhz-14dBi 4A Panel Antenna

2400-2500/5150-5850Mhz-14dBi 4A Panel Antenna

Model No.： P714463
Frequency： 2400-2500/5150-5850Mhz
Gain： 14dBi
VSWR： ≤1.5/2.0
Beam width： H:38° ; V:35°
Polarization： Horizontal and Vertical
Material： ABS
Product size： 300*205*65mm
Product Details
Electric Specification
Model No.P714463
Frequency range-MHz2400-2500MHZ5750-5850MHZ
Bandwidth -MHz100100
Gain-dBi14
VSWR≤ 1.5≤ 2.0
Horizontal Beam width-°38
Vertical Beam width-°35
Input Impedance -Ω50
PolarizationHorizontal and Vertical
Maximum input power -W50
Connector4*N-Female
Mechanical Specification
Dimensions -mm300*205*65
Weight -kg0.8
Pole-mmΦ25-52
