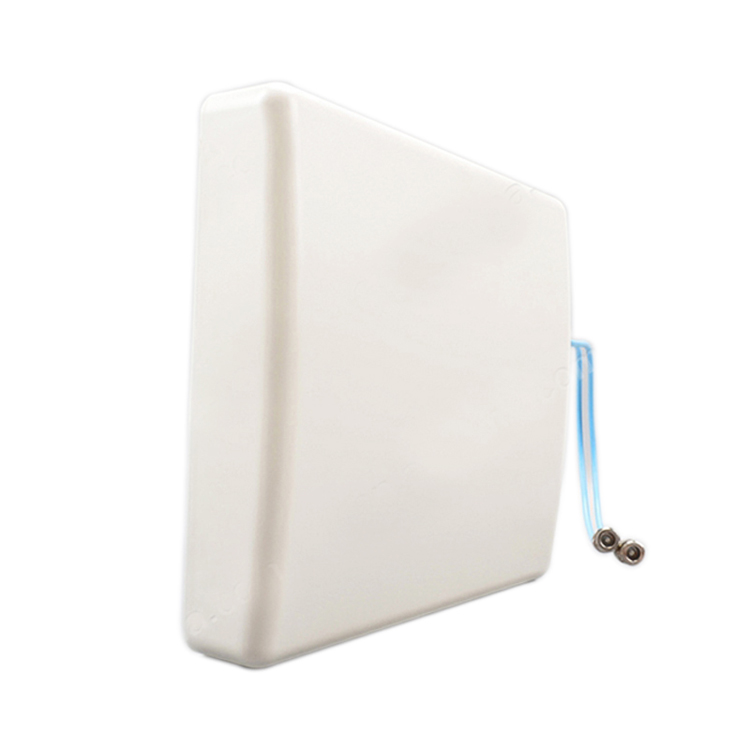

2400-2500/5150-5850Mhz-11/14dBi Panel Antenna

2400-2500/5150-5850Mhz-11/14dBi Panel Antenna

Model No.： P714202
Frequency： 2400-2500/5150-5850Mhz
Gain： 11/14dBi
VSWR： ≤2.0
Beam width： H:65° ; V:16°
Polarization： Horizontal and Vertical
Material： ABS
Product size： 237*229*50mm
Product Details
Electric Specification
Product name
2400-2500/5150-5850MHZ   MIMO panel antenna
Model No.
P714202
Frequency range-MHz
2400-2500
5150-5850
Bandwidth -MHz
100
700
Gain-dBi
11
14
Horizontal Beam width-°
65°
Vertical Beam width-°
16°
VSWR
≤2.0/2.5
Input Impedance -Ω
50
Polarization
Vertical / Horizontal
Maximum input power -W
20

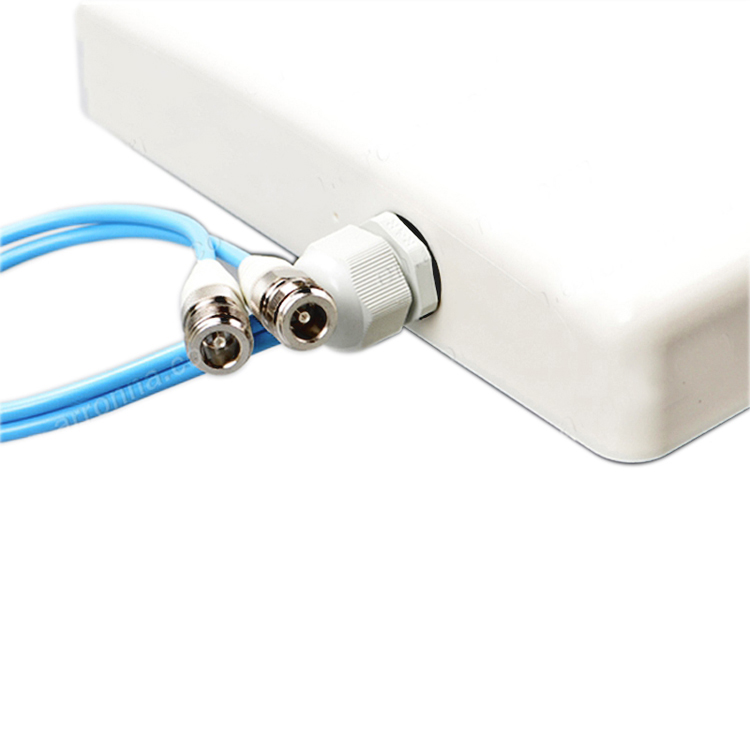

Connector
2*N-Female
Mechanical Specification
Dimensions -mm
237*229*50
Weight -Kg
0.66
