Shenzhen Arronna Telecom Co., Ltd.
Product Detail

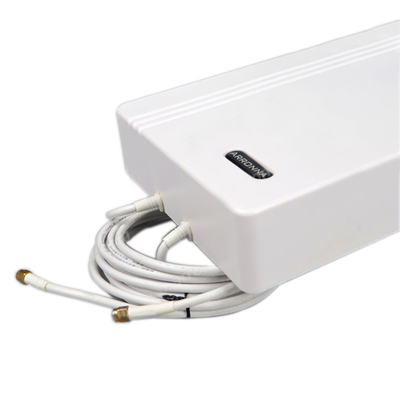

2400-2500/5150-5850Mhz-9/11dBi Panel Antenna

2400-2500/5150-5850Mhz-9/11dBi Panel Antenna

Model No.： P711241
Frequency： 2400-2500/5150-5850Mhz
Gain： 9/11dBi
VSWR： ≤2.5
Beam width： H:70° ; V:35°
Polarization： Horizontal/Vertical
Material： ABS
Product size： 240*179*40mm
Product Details
Electric Specification
Product name
2400-2500/5150-5850MHZ   MIMO panel antenna
Model No.
P711241
Frequency range-MHz
2400-2500
5150-5850
Bandwidth -MHz
100
700
Gain-dBi
9
11
Horizontal Beam width-°
70°
Vertical Beam width-°
35°
VSWR
≤2.5
Input Impedance -Ω
50
Polarization
Vertical / Horizontal
Maximum input power -W
50
Connector
2*N-Female
Mechanical Specification
Dimensions -mm
240*179*50
Weight -Kg
0.48
