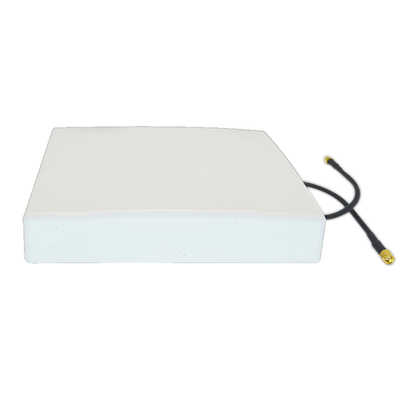

700-800Mhz-8dBi Panel Antenna

Electric Specification

Model No.

P208215

Frequency range-MHz

700-800

Bandwidth -MHz

100

Gain-dBi

8

Horizontal Beam width-°

75

Vertical Beam width-°

65

F/B-dB

15

VSWR

≤1.7

Input Impedance -Ω

50

Polarization

Horizontal and Vertical

Maximum input power -W

50

Connector

2*N-Female

Mechanical Specification

Dimensions -mm

237*229*50

Pole-mm

Φ25-52

Weight -Kg

0.7
