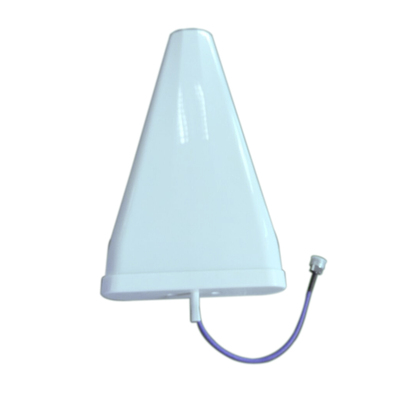

800-960/1710-2700Mhz-11dBi LPDS Log-Periodic Antenna

Product Name

800-960/1710-2700Mhz-11dBi Log-Periodic Antenna

Electric Specification

Model NO

Y811102

Frequency Range-MHz

800-960/1710-2700

Bandwidth-MHz

160/990

Gain-dBi

11

Horizontal beamwidth-°

65

Vertical beamwidth -°

45

F/B-dB

≥18

VSWR

≤1.5

PIM3(@2×37dBm)

≤-107dbm

Input Impedance -Ω

50

Polarization

Vertical

Maximum Power -W

50

Connector

N-K

Mechanical Specification

Dimension-mm

450*210*65

Weigh-kg

0.5
