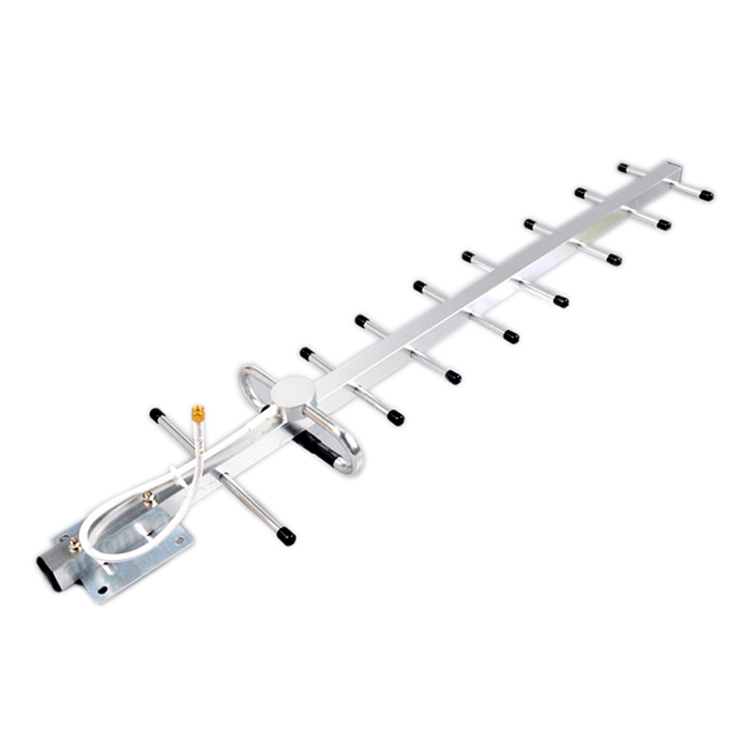

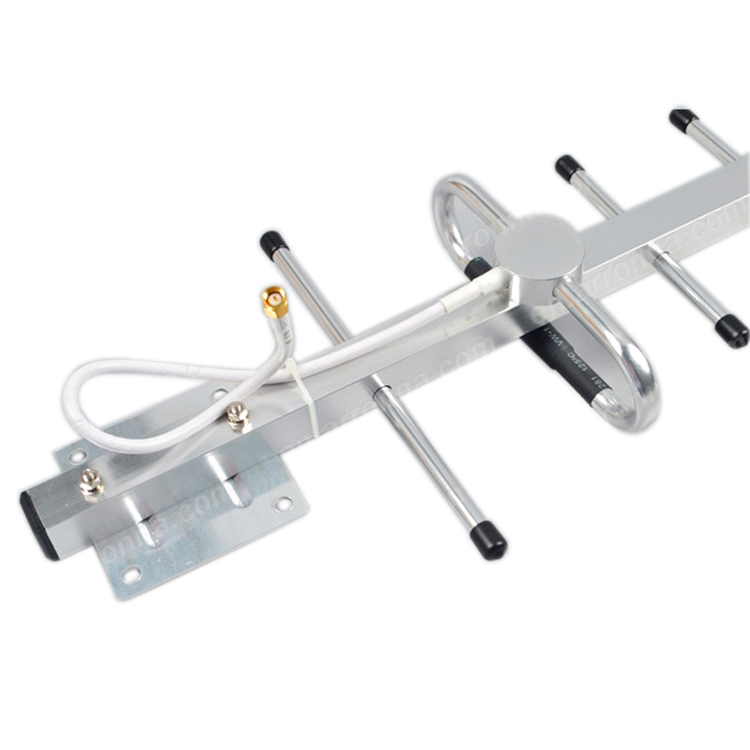

870-960/1850-1990Mhz-12dBi Yagi Antenna

Electric Specification

( 870-960/1850-1990-12Dbi Yagi Antenna)

Model NO

Y212130

Frequency Range-MHz

870-960/1850-1990-MHz

Gain-dBi

12-dBi

Bandwidth－MHz

H:49°   ;   V:38°

Front and Back ratio－dB

≥18

VSWR

≤2.0

Polarization

Vertical

Maximum input power

100 -W

Input Impedance-Ω

50 -Ω

Mechanical Specification

Connector

N-Female

Size

740×16×16-mm

Weight

0.29Kg

Holding pole

Φ40 to Φ50-mm

Temperature

-40 to +60-℃

Material

Aluminum

Wind resistance

60-m/s
