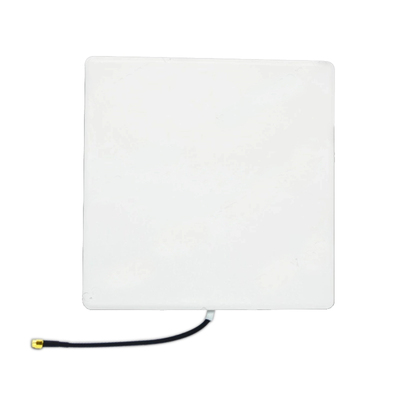

2400-2700Mhz-14dBi Panel Antenna

2400-2700Mhz-14dBi Panel Antenna

Model No.： P414144
Frequency： 2400-2700Mhz
Gain： 14dBi
VSWR： ≤1.5
Beam width： H:35°;V:32°
Polarization： Vertical
Material： ABS+Aluminum
Product size： 195*175*42mm
Product Details


Product name2400-2700MHZ Single polarization panel antenna
Electric Specification
Model No.P414144
Frequency range-MHz2400-2700
Bandwidth -MHz300
Gain-dBi14
Horizontal Beam width-°35
Vertical Beam width-°32
F/B-dB17
VSWR≤1.5
Input Impedance -Ω50
PolarizationVertical
Maximum input power -W50
ConnectorN-Female
Mechanical Specification
Dimensions -mm195*175*42
Pole-mmΦ25-52
