1785-1805Mhz-3dBi FRP Antenna

1785-1805Mhz-3dBi FRP Antenna

Model No.： D203101
Frequency： 1785-1805Mhz
Gain： 3dBi
VSWR： ≤1.5
Beam width： H:360°;V:80°
Polarization： Vertical
Material： ABS+Aluminum
Product size： Φ20*310mm
Product Details
Product name
1785-1805MHz fiberglass antenna
Model No.
D203101
Frequency range-MHz
1785-1805
Bandwidth -MHz
20
Gain-dBi
3
Horizontal Beam width-°
360°
Vertical Beam width-°
80°
VSWR
≤1.5
Input Impedance -Ω
50
Polarization
Vertical
Maximum input power -W
50

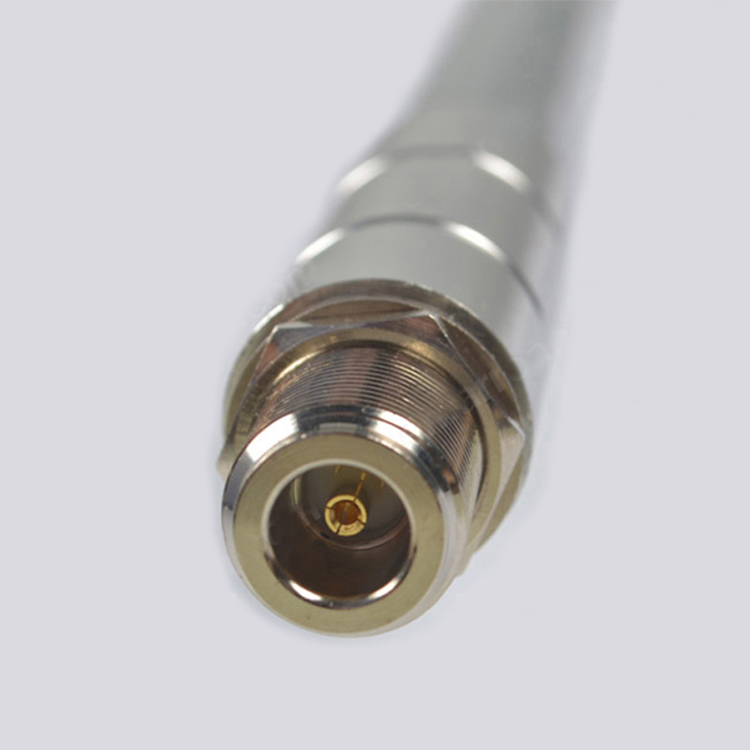

Connector
N-Female

Dimensions -mm
Φ20*310
Weight-KG
0.5
