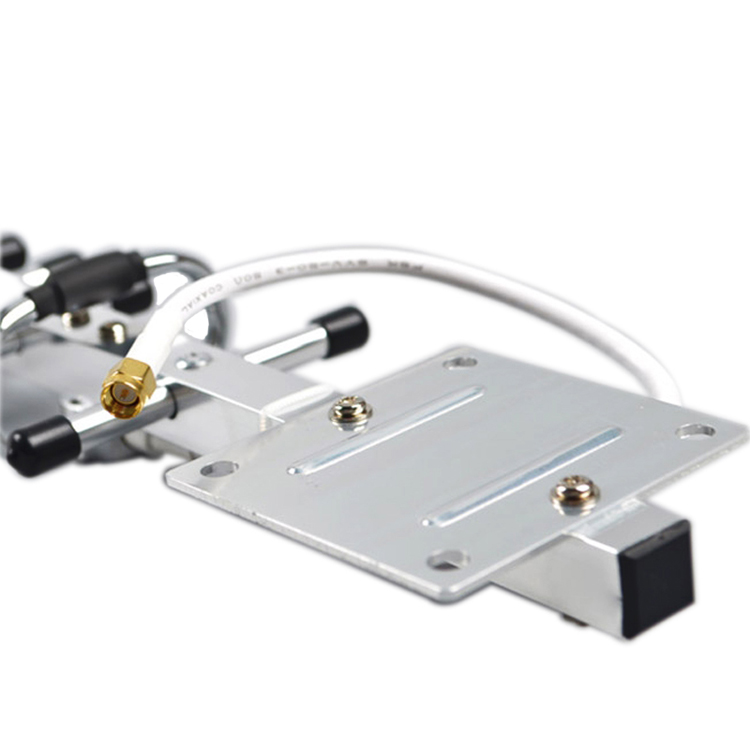

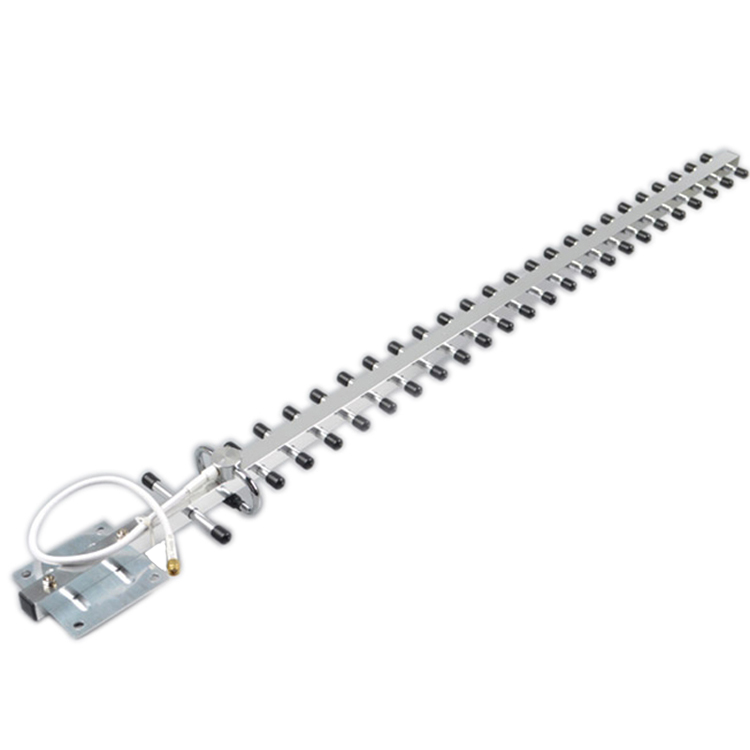

1920-2170Mhz-16dBi Yagi Antenna

1920-2170Mhz-16dBi Yagi Antenna

Model No.： Y316105
Frequency： 1920-2170Mhz
Gain： 16dBi
VSWR： ≤1.5
Beam width： H:35°;V:30°
Polarization： Vertical
Material： Aluminum
Product size： 580*75*45mm
Product Details


Product name
1920-2170MHz 16DBI yagi antenna
Model No.
Y316105
Frequency range-MHz
1920-2170
Bandwidth -MHz
250
Gain-dBi
16
Horizontal Beam width-°
35°
Vertical Beam width-°
30°
VSWR
≤1.5
Input Impedance -Ω
50
Polarization
Vertical
Maximum input power -W
100
Connector
SMA

Dimensions -mm
580x75x45
Weight -Kg
0.62
