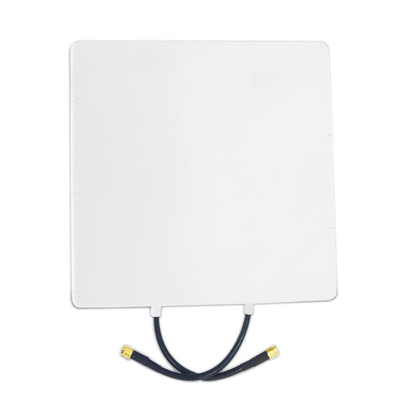

3400-3600Mhz-14dBi 2A Panel Antenna

3400-3600Mhz-14dBi 2A Panel Antenna

Model No.： P514254
Frequency： 3400-3600Mhz
Gain： 14dBi
VSWR： ≤1.7
Beam width： H:35° ; V:32°
Polarization： Horizontal and Vertical
Material： ABS
Product size： 200*200*40mm
Product Details
Electric Specification
Product name
3400-3600MHz 3.5G patch antenna
Model No.
P514254
Frequency range-MHz
3400-3600
Bandwidth -MHz
200
Gain-dBi
14
Horizontal Beam width-°
35°
Vertical Beam width-°
30°
VSWR
≤1.7
Input Impedance -Ω
50
Polarization
Vertical/Horization
Maximum input power -W
20
Connector
2*SMA
Mechanical Specification
Dimensions -mm
200*200*40
Weight -Kg
0.5
